Burleigh Instruments/EXFO Fabry-Perot Interferometers, Wavemeters, Etalons, and Piezo systems

Refurbished Burleigh/EXFO Instrumentation

Wavemeters, Fabry-Perot Interferometers, Piezo Electronics and MORE

We stock replacement HeNe lasers for these wavemeters including NEW single frequency HeNe's

Burleigh WA-1500 Wavemeter High Res +- .2PPM Accuracy VIS/NIR/IR Configurations WA-1000 Lower Accuracy Model +- 1PPM Accuracy WA-1000 IR configured Can be reset for VIS or NIR

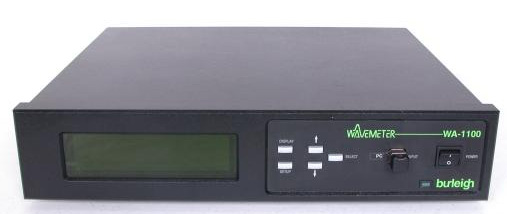

Burleigh WA-1100 Wavemeter 700 -1700 nm +- 1 PPM Accuracy Resolution is .001 nm FC/APC Fiber Input Also Higher Accuracy WA-1650
Burleigh WA-2500 Wavemeter Jr Wide Range 400-1800 nm .1 nm Accuracy *Economical*
Burleigh WA-7000 Multiline Wavemeter Optical Channel Analyzer NIR: 1270 to 1680 nm Accuracy: +- 1PPM +- .0015 nm at 1500 nm *Coming Soon: EXFO WA-7600's!*

/>Burleigh WA-20 Wavemeter High Accuracy - Low Price!

Burleigh Pulsed Wavemeter Model WA-4000 for Pulsed Lasers and OPO's
Pulsed and CW laser wavelength measurement Absolute wavelength accuracy of ±1 cm^-1 Built-in HeNe laser wavelength standard for continuous calibration Operation from 400 to 1100nm Displays wavelength (nm) or wavenumber (cm^-1) Visible tracer beam to facilitate alignment Asynchronous operation with automatic pulse detection Measures spectral characteristics of stored spectra RS-232 and IEEE-488 interface capability

Specifications

	WA-4000
Wavelength
Range	400 - 1100 nm
Absolute Accuracy	± 1 cm^-1 ± 0.06 nm @ 800 nm
Spectral Resolution
Fizeau Etalon	75 GHz
Maximum Laser Bandwidth
Fizeau Etalon	450 GHz
Measurement Rate	20 Hz
Display Rate
Wavelength Only	> 5 Hz
Wavelength/Spectrum	> 1 Hz
Minimum Input
Energy	1 µJ
Power	10 µW

Laser Spectrum Analyzer SA-800-NIR Plus, 980 nm to 1145 nm mirrors, other wavelengths optional
Highest Finesse Available The SA^Plus Laser Spectrum Analyzer employs a piezoelectrically scanned confocal mirror Fabry-Perot interferometer to provide the finesse necessary to achieve high-resolution measurements. For wavelengths greater than 1000 nm, the SA^Plus is the only laser spectrum analyzer of its kind to guarantee a finesse of over 300. At shorter wavelengths, a finesse greater than 200 can be expected. The free spectral range of the SA^Plus system is configured for 8 GHz. The system can be reconfigured to a different free spectral range by simply changing the mirror set.

Burleigh HiFase Laser Etalon HF-1500

Burleigh Piezo Drivers PZ-70, PZ-42, and 3-axis PZ-62, RG-91, RG-93, RC-43 Ramp Generators, CFT RC-45 controllers, and PCS-250.

Inchworms and Inchworm Controllers, CE-2000 etc.

PZT Aligner/Translator Assemblies with 2” Star Gimbal Mounts SG-201 with SG-306 base

Burleigh Fabry-Perot Interferometers


LIKE NEW! Fabry-Perot RC-140 or RC-110 with Ramp Generator piezo electronics configured with mirrors of choice. Includes kinematic base. DAS-10 Stabilization electronics available as option.

We specialize in the rebuilding and repair of Burleigh's Fabry-Perot instruments having sold systems to US government labs and research facilities around the world. We offer custom fabrication of etalon mirror sets using Burleigh's original vendors and suppliers. These mirrors are produced to a higher specification than original designs using lambda/200 flat substrates.

Download Burleigh Technical Note on FabryPerot Interferometer Design & Uses

Please contact Bill Arkin at bill@lasershs.com with any questions or requests for quotes.
